| Product Name |

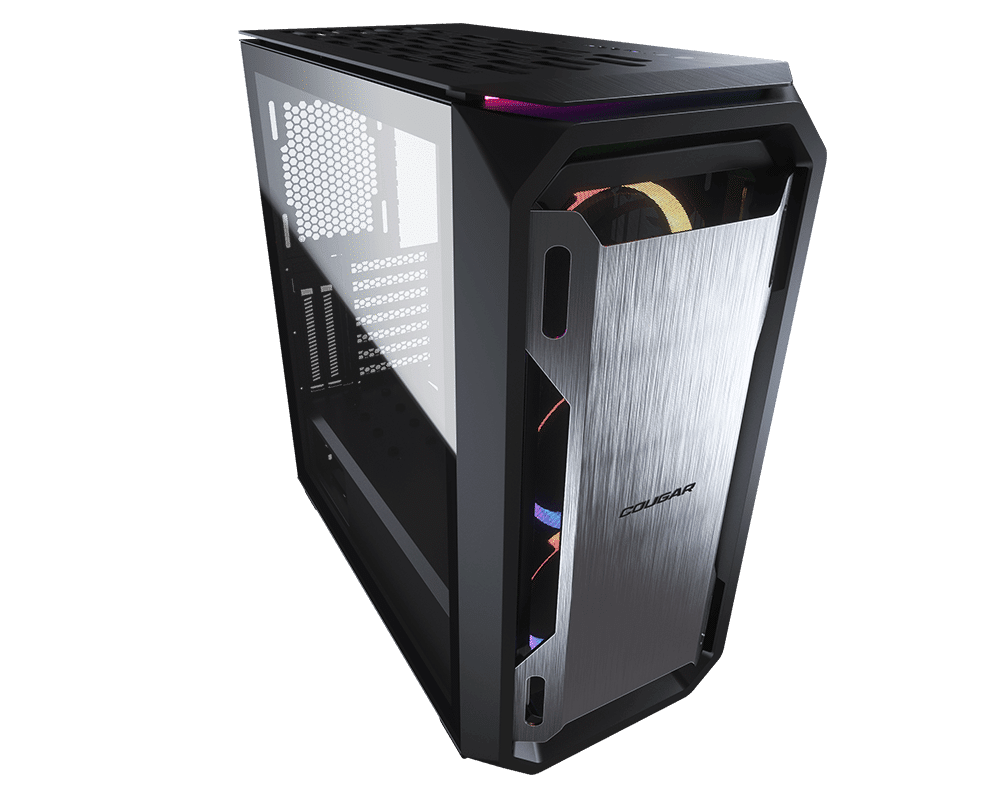

MX670 RGB |
| Model No. |
CGR-5UM6B-RGB |
| Case Form Factor |
Mid Tower |
| Motherboard Type |
Mini ITX / Micro ATX / ATX / CEB / E-ATX |
| Dimensions (WxHxD) |
220 x 492 x 465 (mm)
8.7 x 19.4 x 18.3 (in) |
| I/O Panel |
Type C Gen 2 ( Key A 20-pin connector ) x 1, USB 3.0 x 2,
Mic x 1 / Audio x 1, RGB Button |
| 3.5″ Drive Bay |
2 |
| 2.5″ Drive Bay |
2+2 ( converted from 3.5″ drive bays ) / ( 2 SSD trays included ) |
| Expansion Slots |
7+2 |
| Vertical GPU Support |
Yes |
| Cooling Fan Support |
Front |
* 120mm x 3 / 140mm x 3 |
| Top |
120mm x 3 / 140mm x 2 |
| Rear |
120mm x 1 |
| Pre-installed Fans |
Front |
120mm ARGB fan x 3 |
| Speed |
1200 ± 120 RPM |
| Connector |
5V 3 Pin (ARGB) / 3 Pin (Fan) |
| Maximun Number of Fans |
7 Max. |
| Water Cooling Support |
Front |
* 360mm / 280mm / 240mm / 140mm / 120mm |
| Top |
* 360mm / 280mm / 240mm / 140mm / 120mm |
| Rear |
120mm |
| Transparent Left Panel |
4mm Tempered Glass |
| Onboard Lighting System |
Yes |
| RGB Sync with M/B |
Yes |
| Max. Graphics Card Length |
400 (mm) / 15.7 (in) |
| Max. CPU Cooler Height |
170 (mm) / 6.7 (in) |
| Max. PSU length |
180 (mm) / 7.1 (in) |
